Tutorial on retrieving time series in Climate Wikience version 3.2

31 October 2014   //   by admin   //   Documentation  //  Comments (0)

To retrieve time series in Climate Wikience, three steps should be taken to specify three necessary parameters:

  1. Dataset (select in Layers/Temporal tab)
  2. Geographical region on 3D globe (use “Region selector” tool)
  3. Required time interval for which you would like the time series to be retrieved

Let’s cover these steps in detail.

1. Select dataset

Climate Wikience will retrieve time series for the current dataset. The current dataset is the dataset which properties are currently displayed on “Properties” tab. The name of the current dataset is also displayed on “Time slider” dropdown list:

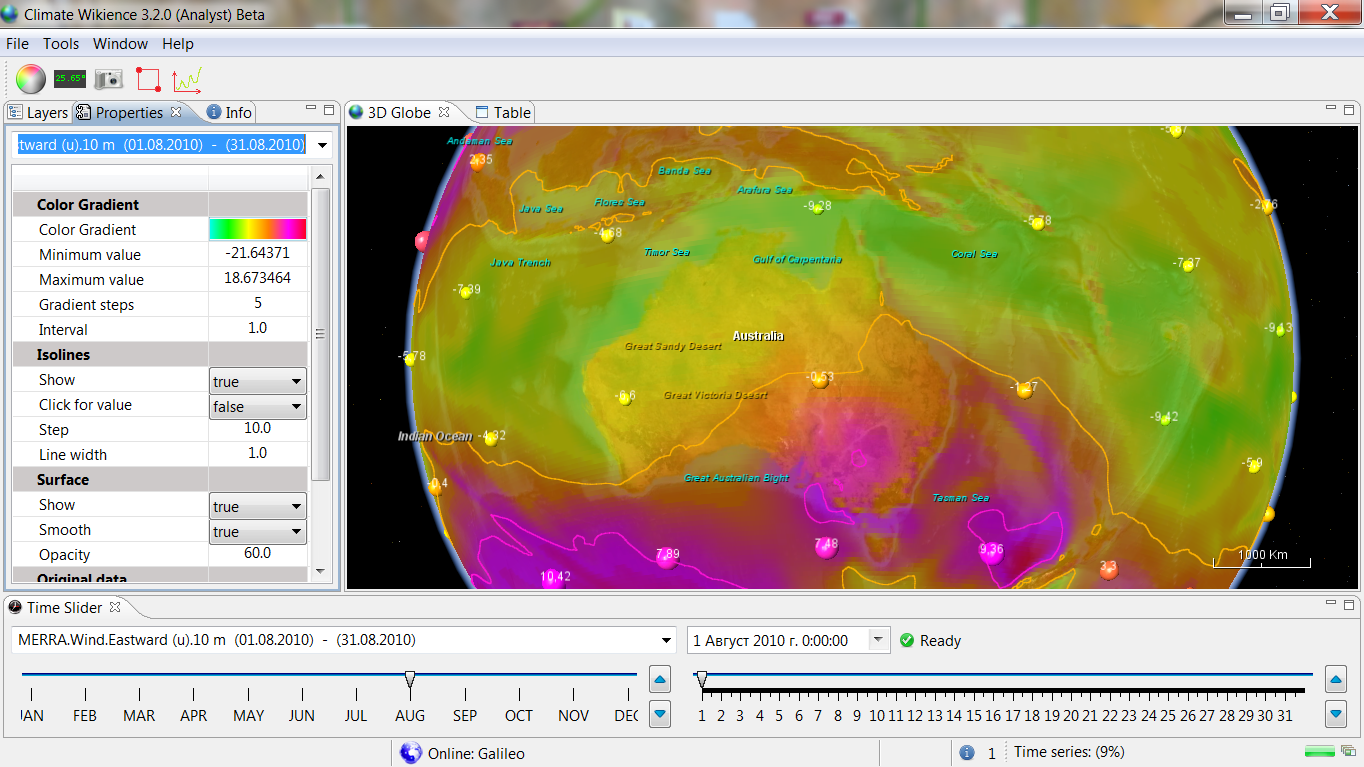

climate_wikience_current_dataset

You can make a dataset current in several ways:
• Find the dataset in tree view on “Layers/Temporal” tab and turn it on by checking the box left to the dataset name
• Select the dataset from dropdown list in “Properties” tab or “Time slider” if you have already turned it on some time earlier during your work with Climate Wikience

2. Select region

Press button regionselector “Select region” located on the toolbar. Climate Wikience will automatically “fly to” the geographical region for which time series are available. Use mouse to select the region. The available region on the 3D Globe will be colored blue.

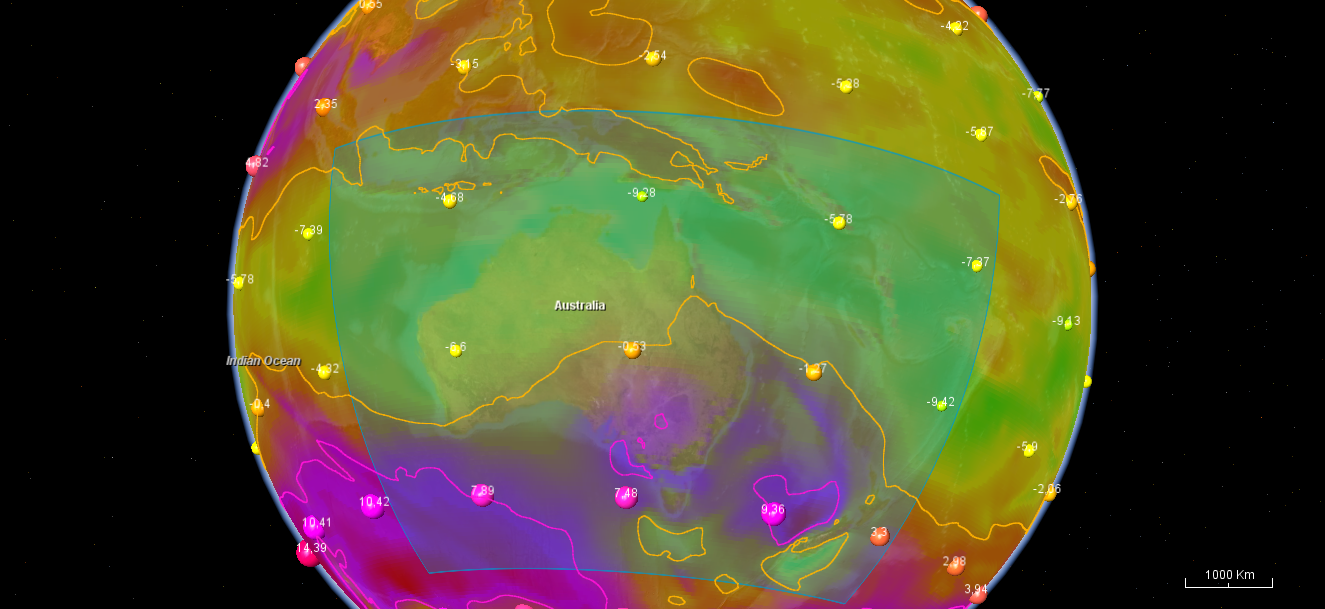

climate_wikience_merra_wind_speed_australia_region

2.1 Limitations on region size

Since there are thousands of grid points for which time series can be obtained, there is a limitation on the size of geographical region that can be selected (for which time series could be requested).

Each dataset has it own limitation on selected region size. To view the region size during selection and to keep the size in the allowed limits, turn on coordinates “Show cursor position” tool. When the region selection is disabled, this tool shows mouse cursor position (latitude and longitude). When the region selection is enabled, it shows the following region paramters near to mouse cursor:
• southern and northern latitude
• eastern and western longitudes
• region size (latitude degrees x longitude degrees)

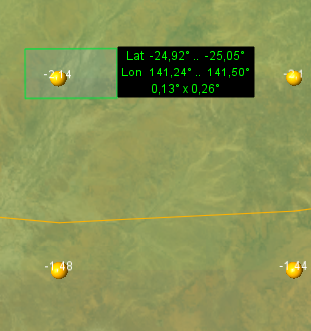

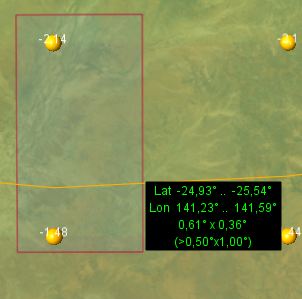

climate_wikience_selecting_region_with_info climate_wikience_selecting_oversized_region_with_info

When you are dragging mouse cursor and the size of the selected region is less than the maximum allowed for the current dataset, the region is colored green. When the region becomes oversized, it is colored red and additionally to region characteristics the size of the maximum allowed region appears:

In this case, the size of the maximum allowed region is 0.5°x1.0°. You can still select the region that is larger than the maximum allowed, however it will be automatically trimmed (shown below at time series request dialog).

2.2 Trimming of the selected region

Once you finished selecting the region, press timeSeriesIcon on the toolbar. Time series request dialog will appear.

climate_wikience_wind_u10m_time_series_dialog_limitations

This dialog summarises the request by showing the selected dataset name, time interval and geographical region.

If you selected the region larger than maximum allowed, the corresponding notification will appear with warning icon warning. The oversized region will be automatically reduced to fit into the maximum allowed boundaries. The northern latitude and western longitude will remain the same (as you selected) while the southern latitude and eastern longitude of the region border will be changed.

In the dialog shown above, the difference between latitudes does not exceed 0.5° and between longitudes does not exceed 1°. The southern latitude was calculated by subtracting 0.5° from the value of nothern latitude. The eastern longitude was calculated by adding 1° to the western longitude.

3. Select time interval

The time series dialog allows to specify the time interval for which time series should be retrieved. There are two important notices about selecting time interval.

3.1 Available time interval

The available time interval for time series (shown at time series request dialog) may differ from the available time interval for gridded global dataset (shown on time slider)

For example, NASA MERRA wind speed gridded data are available globally currently only for August 2010, but time series for this dataset are available for Australia since 01 January till 31 July 2014 (35.5 years).

3.2 Limitations on the selected time interval length

Each dataset has limitation on the time interval length that could be requested per single query.

Select start and end date for time interval for which you would like to retrieve time series. If the selected time interval will exceed the maximum allowed length for current dataset, corresponding notification will appear. This notification will contain the maximum allowed time interval length and the reduced time interval for which time series will be requested.

In the reduced time interval, the starting date will be the same as you selected while the end date will be set to the earlier date than you selected to keep the interval length within maximum allowed. For example, if the maximum allowed time interval is 10 years, the end date is calculated as start date + 10 years.

The limit on time interval is introduced since there are datasets with hourly time steps and long available time periods. For example, NASA MERRA wind speed and direction data are avaialbe for 35.5 years with hourly time step. This is approximately 311000 values for a single grid point.

Results

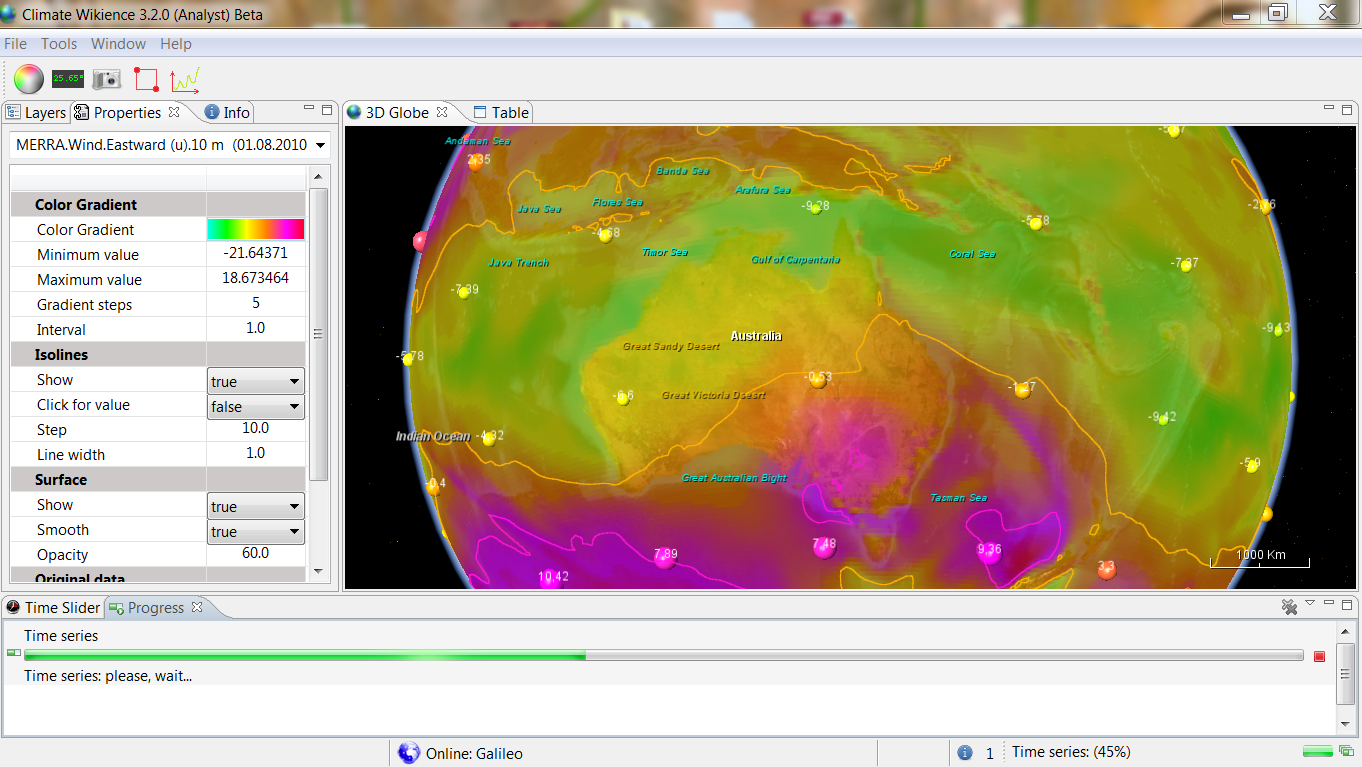

When you selected all parameters, press the OK button on time series request dialog. Climate Wikience will send your request to server. Please, wait while the server will extract the data. Once Climate Wikience receives the data, it prepares the interface to display the result. If the resulting time series has thousands of values, the process may take some time to complete, so you will be notified by the progress bar.

climate_wikience_time_series_in_progress

Time series are visualized by data table.

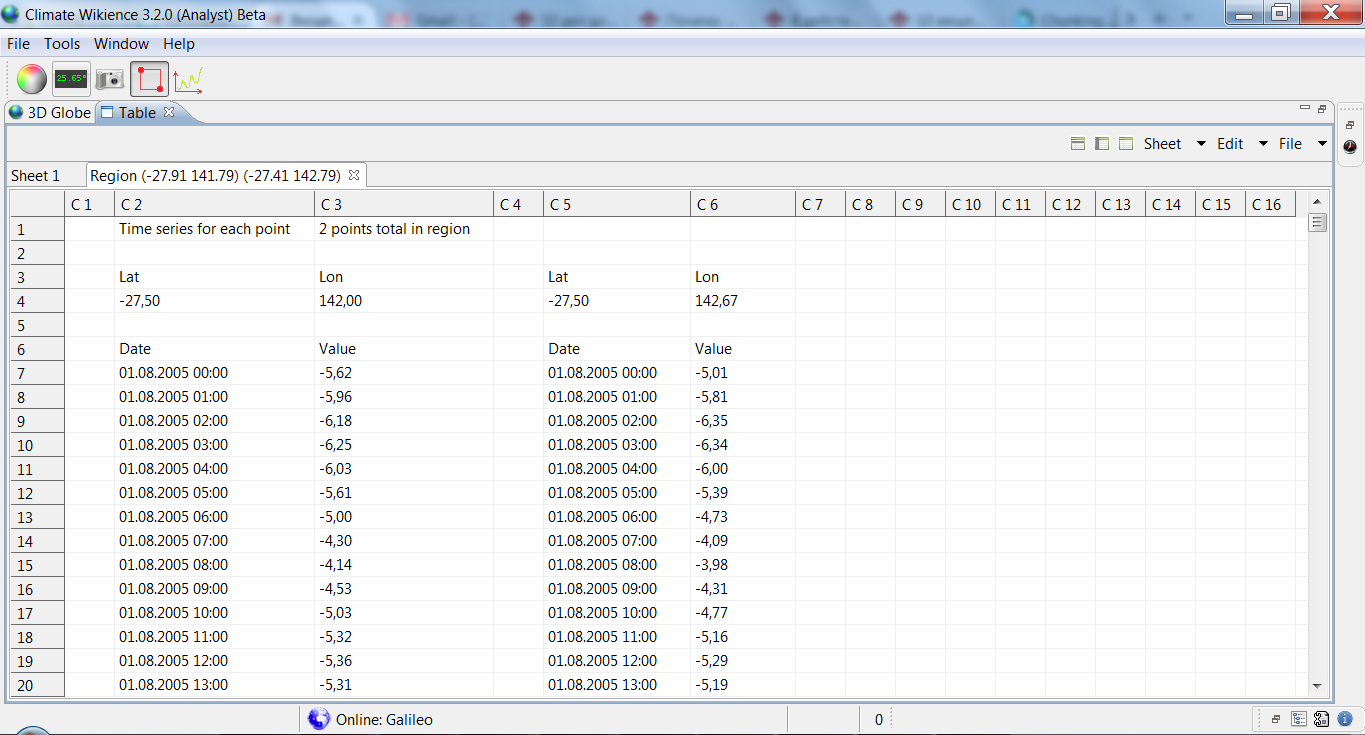

climate_wikience_wind_u10m_data_table_result

The format of the time series in data table is as follows. The tab name of the data table contains the cordinates of the selected region. In case if region was reduced, the coordinates of the reduced region are shown. At the top of the data table sheet, there is the number of points covered by the region (maybe reduced).

For each grid point of the region, its coordinates are shown (Lat and Lon). Other rows of the data table sheet show the dates and the values of the time series for a grid point (one row per one date).

If you would like to select time series for different time interval but for the same region (since there is a limitation on the maximum time interval length per single query), do not select region again. Instead, call the time series request dialog by clicking timeSeriesIcon on the toolbar. The dialog will contain both the old region and the old time interval you used for your previous query. Adjust time interval as you need and press OK button. Climate Wikience will retrieve time series for the same region as previous query but for updated time interval.

If you would like to save the resulting time series as CSV or Excel file, use corresponding buttons at the top right corner of the data table.

Related links

Time series for NASA MERRA wind speed and direction are now available!

29 October 2014   //   by admin   //   News  //  Comments (0)

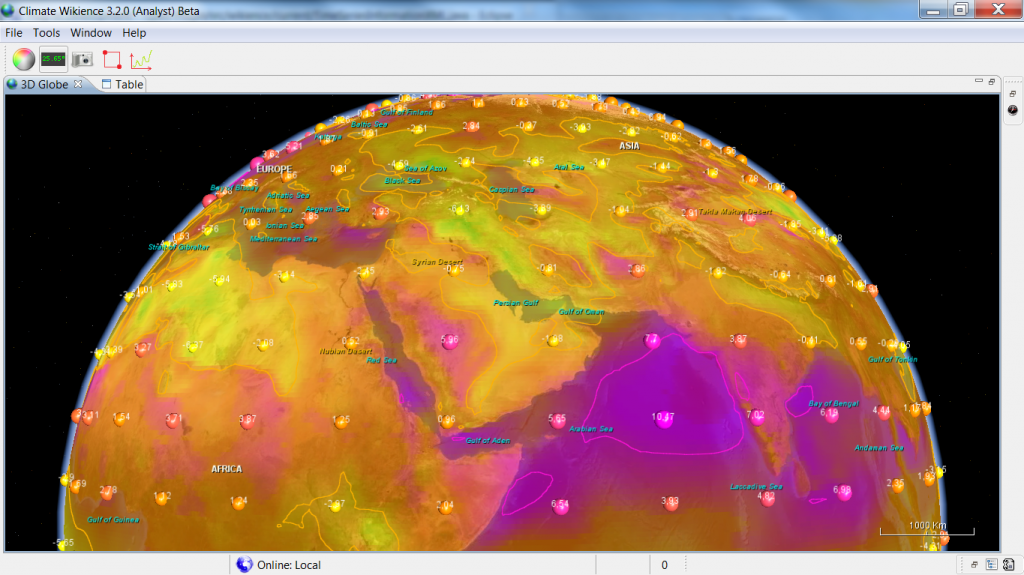

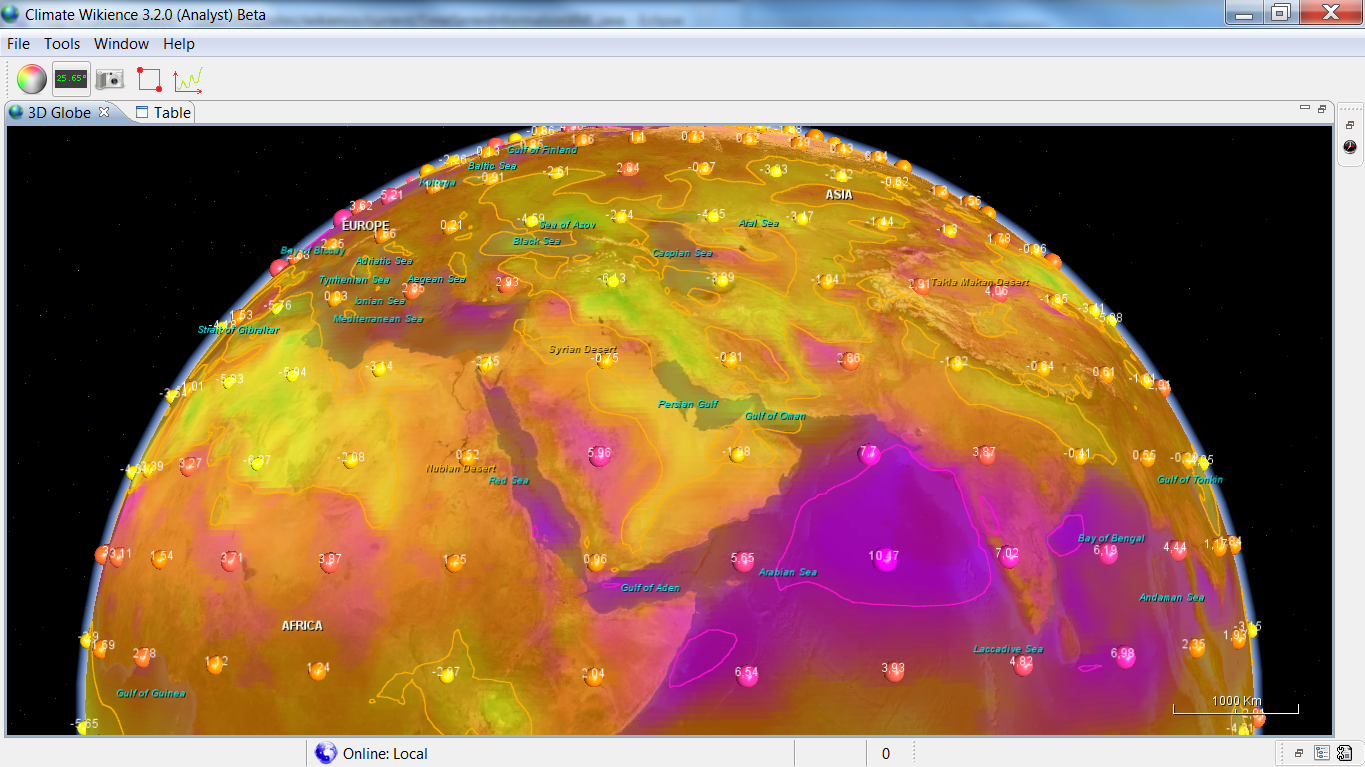

climate_wikience_merra_wind_speed_eastward_u10m_1august2010
The 3D view of eastward wind speed (u10m) for the 1st of August, 2010

The wind speed and direction dataset

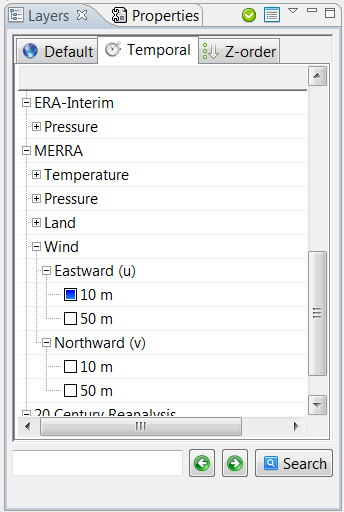

The new dataset can be found in Climate Wikience at path MERRA.Wind.* within Layers/Temporal tab.

climate_wikience_merra_wind_path_in_tree

The new dataset consists of 4 variables:

  • MERRA.Wind.Eastward (u).10 m – Eastward wind speed at 10 meters above displacement height
  • MERRA.Wind.Eastward (u).50 m – Eastward wind speed at 50 meters above surface
  • MERRA.Wind.Northward (v).10 m – Eastward wind speed at 50 meters above displacement height
  • MERRA.Wind.Northward (v).50 m – Northward wind speed at 50 meters above surface

Time series for each 4 variables are available since 1 January 1979 up to 31 July 2014 (35.5 years). MERRA wind speed and direction dataset has 1 hour time step. Thus, the data are available daily for each hour:

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23      GMT +00:00.


Currently time series for wind speed and direction are available for the region covering Australia (shown in transparent blue color):

climate_wikience_merra_wind_speed_australia_region
latitudes 51.5 … -0.5 and
longitudes 101 … -177

The region consists of 12566 points (103 latitude x 122 longitude points). The time series are available for each point.

Limitations

Since there are thousands of points for which time series can be obtained, there is a limitation on the size of geographical region for which time series could be asked in single request. You can ask time series for any geographical region not larger than 0.5° latitude by 1° longitudes in size

The region of size 0.5°x1° covers at maximum 2 points of the wind speed grid.

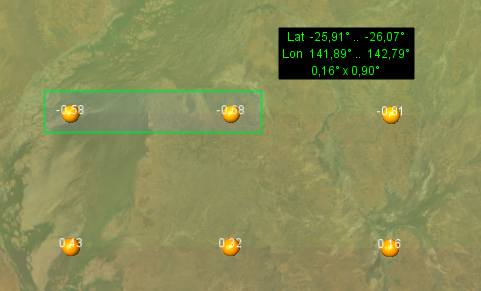

climate_wikience_05by1_region

There is also limitation on the time period that could be requested at one go. Currently the period is limited to 10 years. For example, if you need time series for a region for full available time period, you should perform several requests each not exceeding 10 years. You will be notified on the time series dialog window if the region or time period limitation are violated. Climate Wikience will automatically reduce the selected region and time interval to comply with the limitation.

climate_wikience_wind_u10m_time_series_dialog_limitations

Both limitations are introduced to keep reasonable the data volumes that could be delivered to your PC over the Internet for your single wind speed query.

Data Table

Time series can be easily retrieved with Climate Wikience. The Data Table can display dates and values for each point of time series for the requested region and time period. Data Table is also able to export the data to Excel or CSV format.
climate_wikience_wind_u10m_data_table_result

Further reading

Climate Wikience Version 3.2 (beta)

29 October 2014   //   by admin   //   News  //  Comments (0)

New version of Climate Wikience is available!

New release contains modifications to ChronosServer-Climate Wikience protocol. Please, update your current Climate Wikience installation in order to keep its correct operation.

Climate Wikience 3.2 also contains new features:

  • Data table
  • Region selector
  • Time series request dialog

Updated features:

  • Cursor position now displays region characteristics when region selector is turned on

Download Climate Wikience 3.2 Beta
